Precision CNC Machining for Hydraulic Components: Your Trusted Transmission Parts Expert
In the demanding world of hydraulic systems, precision and durability are paramount. From industrial automation to aerospace, the performance of a hydraulic pump, valve, or actuator often hinges on the accuracy of its machined parts. High-pressure environments, complex geometries, and tight assembly tolerances all require a partner with deep expertise in precision CNC machining. This is especially critical for transmission parts like gears, worm gears, and spline shafts, where even the slightest deviation can compromise function and longevity.
As a CNC machining specialist for custom hydraulic parts, we deliver end-to-end manufacturing solutions tailored to your drawings, tolerances, and performance requirements. Whether you need high-strength stainless steel valve blocks, lightweight aluminum pump bodies, or hard-to-machine copper pistons, our team ensures dimensional consistency and performance under pressure.
Challenges in Hydraulic Part Machining — and How We Solve Them
Hydraulic parts often involve:
- Complex internal oil passages
- High-strength materials like hardened steel or titanium
- Tight geometric tolerances for sealing and pressure containment
- Surface finish requirements as low as Ra 0.2μm
- Compatibility with multi-axis assemblies or rotary hydraulic systems
To overcome these, we rely on a combination of:
- 5-axis CNC machining centers for multi-face operations in a single setup
- Swiss-type turning machines for shaft parts like spline shafts and worm gears
- Advanced CAM programming for intricate internal flow channels
- CMM inspection (Coordinate Measuring Machine) and roundness testers for form tolerance validation
- Full traceability under ISO 9001 quality standards
Our team handles prototyping, low-volume production, and OEM mass manufacturing, allowing you to scale at any phase of your product lifecycle.
Common Materials for CNC Hydraulic Parts
Material selection is critical in hydraulic systems due to exposure to pressure, heat, and fluid contact. We work with a wide range of machinable materials, each selected to match application-specific performance:
- Stainless Steel (304/316/17-4PH) – Excellent corrosion resistance, ideal for hydraulic valve blocks, pump shafts, and seal housings.
- Aluminum (6061/7075) – Lightweight and cost-effective, often used in mobile hydraulic systems or aerospace applications.
- Hardened Tool Steel – High wear resistance, suitable for pistons, plungers, and high-load transmission gears.
- Copper and Brass Alloys – Excellent fluid compatibility and thermal conductivity for seal seats and pump inserts.

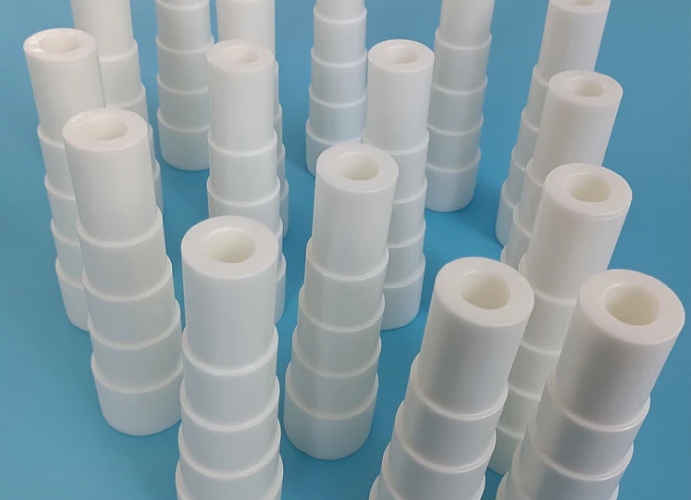

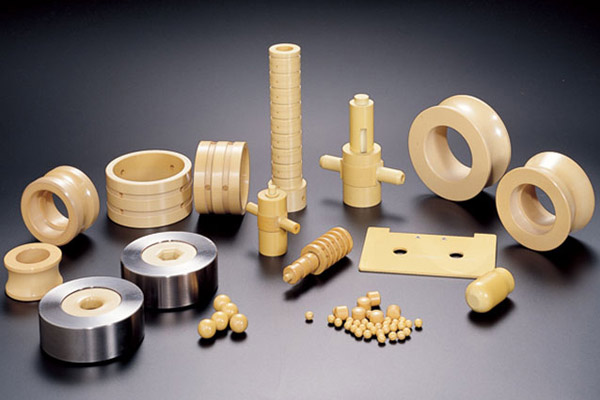

- Engineering Plastics (PEEK, PTFE) – Used in custom seals, guide rings, or non-metallic bushings.
- Titanium Alloys – Lightweight yet strong, used for aerospace-grade hydraulic parts requiring strength-to-weight performance.
Machining Capabilities Overview
We specialize in Custom CNC machining based on client drawings, combining multi-process capabilities to meet the full spectrum of hydraulic component needs:
- Turning & Milling – Up to ±0.001mm tolerance
- Multi-axis CNC Machining – Efficient handling of complex geometries and undercuts
- Surface Finishing – Polishing, anodizing, passivation, plating
- Heat Treatment – For hardened steel gears or shafts
- Thread Machining – Both metric and imperial, including NPT, BSP, UNF
- Flow Channel Machining – Internal channels for hydraulic pump heads and manifolds
- Shaft & Gear Machining – In-house production of spline shafts, gears, and worm gears for fluid power transmission
Inspection Equipment:
- ZEISS CMM
- Roundness and cylindricity testers
- Surface profilometers
- 2.5D optical vision systems
- Ultrasonic thickness gauges
All products are delivered with full dimensional reports, material certificates, and process documentation upon request.
Typical Components We Machine for Hydraulic Applications
We serve OEMs and system integrators across various sectors—industrial automation, construction machinery, aerospace, and energy. Our core CNC-machined hydraulic components include:
- Hydraulic Pump Housings
- Pump Shafts & Gear Shafts

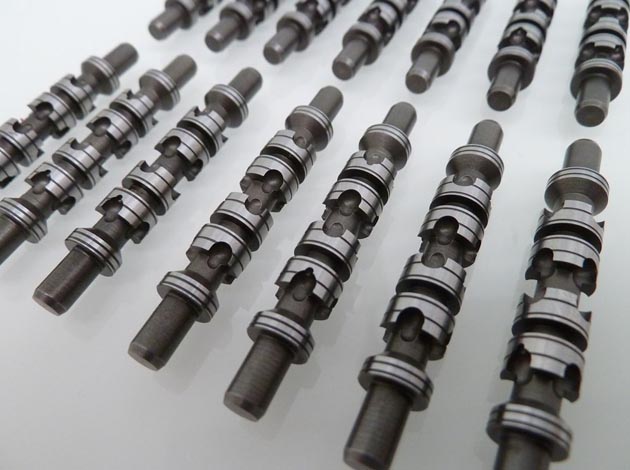

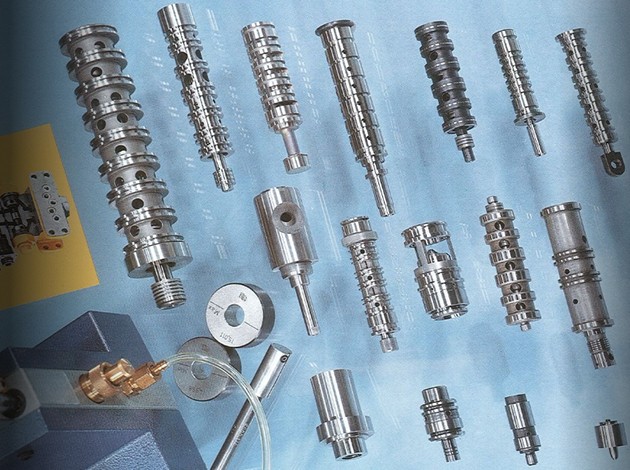

- Valve Spools and Sleeves

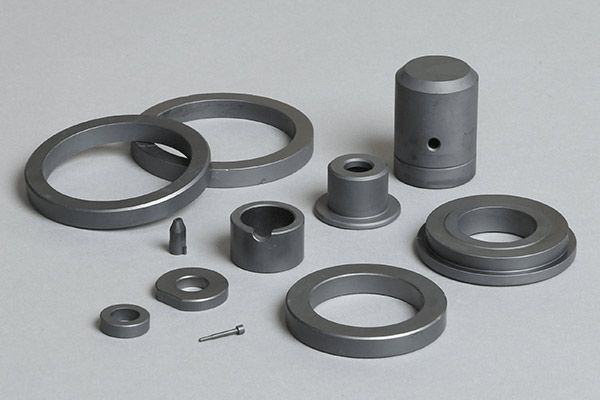

- Hydraulic Seal Seats & Retainers

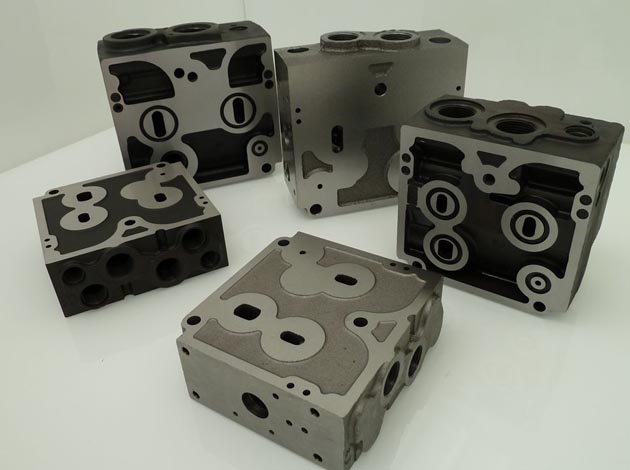

- Valve Blocks and Manifolds
- Custom Piston Components
- Rotary Table Hydraulic Parts
- Spline Shafts and Worm Gear Assemblies
- High-pressure Pump Heads

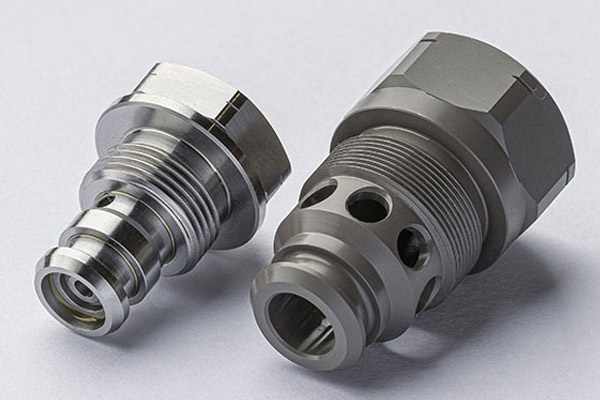

- Fluid Transfer Channels and Connection Ports
- Transmission Parts for Powertrains
We also offer rapid prototyping services for R&D teams looking to test new hydraulic concepts or improve fluid flow within tight packages.
Why We Are the CNC Machining Expert for Transmission & Hydraulic Parts
What sets us apart:
- 20+ years experience in transmission part machining
- Deep expertise in gears, worm gears, spline shafts, hydraulic pistons, and valve assemblies
- Fully certified under ISO 9001, traceable quality from raw material to delivery
- Advanced CAD/CAM + DNC integration for complex hydraulic assemblies
- Responsive project support for both domestic and overseas clients
- Proven track record in custom high-pressure CNC hydraulic parts
From prototyping to production, we serve as your trusted transmission component machining expert, enabling you to focus on system design and performance—while we ensure your parts meet the highest precision standards.
Ready to Start Your Project?
Looking for a reliable partner in hydraulic pump parts machining or custom transmission CNC components? Whether it’s a one-off prototype or an ongoing OEM production run, we are here to help.
Contact us today with your drawings or project requirements. Our engineers will respond within 24 hours to offer a free technical review and quote.
Let’s turn your hydraulic designs into high-performance reality.
